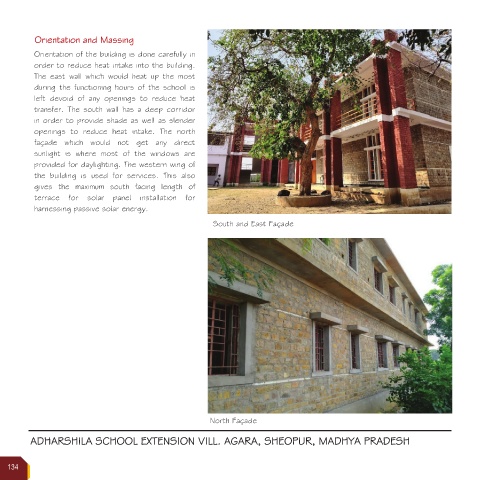

O Orientation and Massing
Orientation of the building is done carefully in
order to reduce heat intake into the building.
The east wall which would heat up the most
during the functioning hours of the school is
left devoid of any openings to reduce heat
transfer. The south wall has a deep corridor
in order to provide shade as well as slender
openings to reduce heat intake. The north
façade which would not get any direct
sunlight is where most of the windows are
provided for daylighting. The western wing of
the building is used for services. This also
gives the maximum south facing length of
terrace for solar panel installation for
harnessing passive solar energy.
South and East Façade

North Façade
