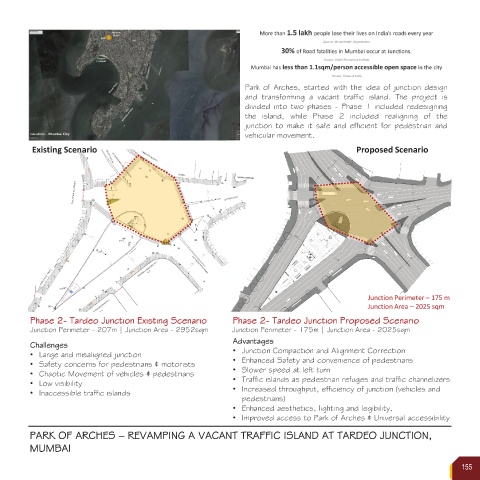

Park of Arches, started with the idea of junction design
and transforming a vacant traffic island. The project is
divided into two phases - Phase 1 included redesigning
the island, while Phase 2 included realigning of the
junction to make it safe and efficient for pedestrian and
vehicular movement.
Existing Scenario Proposed Scenario

Junction Perimeter – 175 m
Junction Area – 2025 sqm
s
i
c
t
g
u
n
n
i
x
i
o
t

n
o
E
t

n
i
o
-
i
r
T
2
a
s
e

h
a
o
c
S

J
e
r
a
n
e
d
c
e

e
c
2
d
S

s
i
h
P Phase 2- Tardeo Junction Existing Scenario P Phase 2- Tardeo Junction Proposed Scenario
o
a
n
r
a
e
o
o
p
d
e
P
n
u
J
r
a
s
-
T
r
o
Junction Perimeter - 207m | Junction Area - 2952sqm Junction Perimeter - 175m | Junction Area - 2025sqm
d
a
a
n
t
v
e
s
g
a
C Challenges A Advantages
n
e
l
e
g
s
h
l
• Large and misaligned junction • Junction Compaction and Alignment Correction
• Safety concerns for pedestrians & motorists • Enhanced Safety and convenience of pedestrians
• Chaotic Movement of vehicles & pedestrians • Slower speed at left turn
• Low visibility • Traffic islands as pedestrian refuges and traffic channelizers
• Inaccessible traffic islands • Increased throughput, efficiency of junction (vehicles and
pedestrians)
• Enhanced aesthetics, lighting and legibility,
• Improved access to Park of Arches & Universal accessibility
